As Standard Double Eccentric Butterfly Valves

Product Description

As Standard Double Eccentric Butterfly Valves

1. The valve adopts double-eccentric sealing structure, valve seat and disc almost have no wear, has sealing function of getting tighter and tighter when closed.

2. Sealing ring adopts stainless steel, which has the advantages of metal hard seal and elastic seal. It has excellent sealing performance under low temperature and high temperature, corrosion resistance, long service life.

3, Body sealing surface use stainless steel or cemented carbide, which is wear resistance, long service life.

4. Large size butterfly board adopts truss structure of high strength, large flow area and low flow resistance.

5. The valve has bi-direction sealing function. It can be installed in any direction without the limitation of medium flow and space position.

6. The drive device can be installed in multiple positions (rotation of 90 or 180 ) for easy use by the user.

Flanged metal or rubber butterfly valves are widely used in drinking water, thermal pipelines, boiler auxiliary systems, petrochemical and metallurgical industries to cut off and regulate various non-corrosive and corrosive medium.

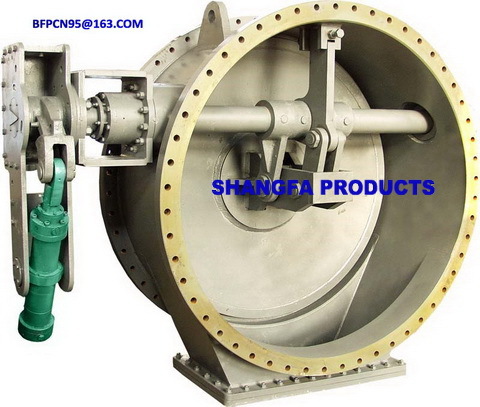

The manual butterfly valve is used in dust-bearing cold wind or hot air pipelines of chemical engineering, building materials, power station, glass and other industries as control device to regulate flow rate or cut off gas medium. It is installed in pipelines with medium temperature  300 and nominal pressure of 0.1-4 Mpa to connect, open or close or adjust medium. The valve should be generally installed horizontally in the pipelines.
