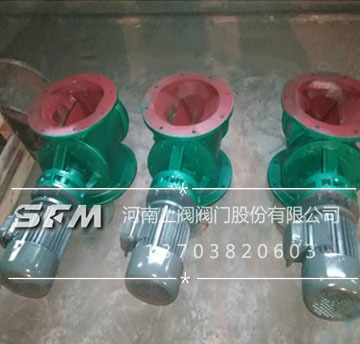

GLJWF-3 Low temperature steel impeller feeder

Product Description

GLJWF-3low-temperature steel impeller feeder is suitable for conveying batching systemin power plant, cement plant, chemical plant and so on. It can be used asgas-locked or quantitative feed when conveying dry powder material. It can alsobe used for ash hopper of dust collector and air heater.It has simple structure, stable performance andconvenient operation and maintenance. It is an ideal accessory in conveying,discharging and batching system

The temperature of the material delivered bythe steel impeller feeder can reach 280 degrees, and the bearings at both ends are isolated from the impeller to prevent contact between the superfine powderand the bearing. High temperature resistant rigid impeller feeder conveying material temperature up to 500 degrees, can be connected by sprocket, reducerand unloader shell have a certain distance. Rigid impeller feeder is commonlyused in pneumatic output system. For pressure output system or negativepressure output system, the rigid impeller feeder can feed to the feeding pipeevenly and continuously, so as to ensure the gas and solid in the pneumaticoutput pipe is relatively stable, so that the pneumatic conveying can worknormally. At the same time, the air pressure in the upper and lower part of the rigid impeller feeder can be cut off and the gas can be locked

Steelimpeller feeder is widely used in dry powder and small particles of non-stickmaterials. Such as: raw material powder, cement, dry slag, coal powder, fly as hand so on, its structure is compact, small volume, good sealing, such as theuse of speed-regulating motor can easily adjust the amount of feed
