Double Eccentric Butterfly Valves

Product Description

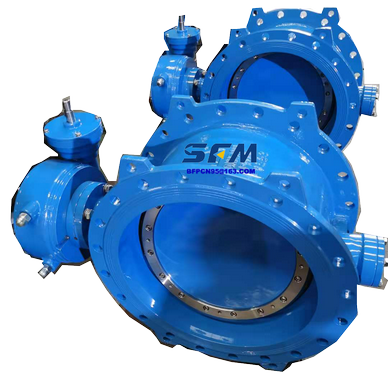

Double Eccentric Butterfly Valves

Double eccentric flange telescopic butterfly valve is a new product developed by our company on the basis of double eccentric flange type butterfly valve telescopic and other products Its structure is new and easy to install and use it is the old pipeline transformation maintenance and matching valve replacement products

Features of double eccentric flanged telescopic butterfly valveset double eccentric flange type butterfly valve and telescopic function as one installation and maintenance is very convenient

The sealing between the telescopic tube and the valve body adopts a wedgeshaped sealing ring which has reliable sealing performance and can guarantee zero leakage

Double eccentric flange type telescopic butterfly valve is used in petrochemical food medicine textile paper water and electricity ship water supply and drainage smelting and other systems all corrosive noncorrosive gas liquid semifluid and solid powder lines and containers for regulation and closure

Double eccentric flange telescopic butterfly valve has been widely used in petroleum chemical industry metallurgy hydropower and other fields as a part of pipe system onoff and flow control The butterfly plate of the telescopic butterfly valve is installed in the diameter direction of the pipe Within the cylindrical channel of the butterfly valve body the disc butterfly plate rotates around the axis and the rotation angle is between 0 90 When rotating to 90 the valve plate is fully open This valve is generally installed horizontally

Technical advantages of double eccentric flange telescopic butterfly valve

small and light easy to disassemble and repair and can be installed in any position

Structure is simple compact operation torque is small 90 degree turn on quickly

flow characteristics straight line good regulation performance

butterfly plate is connected to the stem with a pinless structure to overcome possible internal leakage points

Seals can be replaced and sealed reliably to achieve twoway sealing

Butterfly plate can be sprayed according to user requirements such as nylon or polytetrafluoroethylene

The valve can be designed as flange connection and pair clamp connection

Drive mode can choose manual electric or pneumatic

When the double eccentric flange type telescopic butterfly valve is in the fully open position the thickness of the valve plate of the telescopic butterfly valve is the main obstacle to the medium pressure loss so the pressure drop generated through the valve is very small so it has better flow control characteristics The telescopic butterfly valve has two sealing types elastic seal and metal seal Elastic sealing valve sealing ring can be inlaid on the valve body or attached to the butterfly plate peripheral
